Insulated Pin Terminals

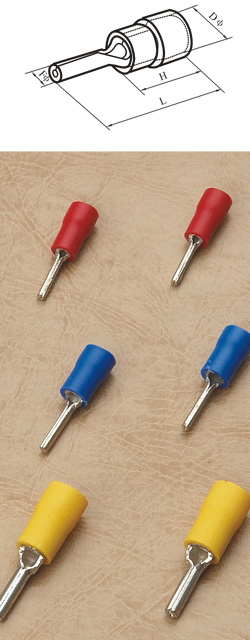

Insulated pin terminals

0.5~1.5mm2(22-16) Imax=19A

Item No. Dimension(mm) Color
L H
PTV1.25-9 1.9 19.0 10.0 4.3 Red
PTV1.25-10 1.9 20.0
PTV1.25-12 1.9 22.0
PTV1.25-13 1.9 23.0
PTV1.25-18 1.9 28.0

1.5~2.5mm2(16-14) Imax=27A

Item No. Dimension(mm) Color
L H
PTV2-9 1.9 19.0 10.0 4.9 Blue
PTV2-10 1.9 20.0
PTV2-12 1.9 22.0
PTV2-13 1.9 23.0
PTV2-18 1.9 28.0

4~6mm2(12-10) Imax=48A

Item No. Dimension(mm) Color
L H
PTV5.5-13 2.8 25.5 12.5 6.7 Yellow

Top

Naked PIN Terminals

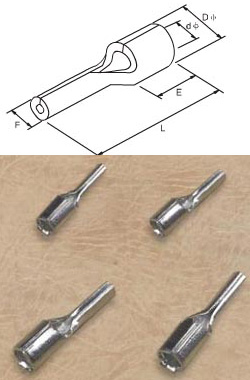

Naked PIN Terminals

0.5~1.5mm2(22-16) Imax=19A

Item No. Dimension(mm)
L E
PTN 1.25 - 9 1.9 13.8 4.8 3.4 1.7
PTN 1.25 - 10 1.9 14.8
PTN 1.25 - 12 1.9 16.8
PTN 1.25 - 13 1.9 17.8
PTN 1.25 - 18 1.9 22.8

1.5~2.5mm2(16-14) Imax=27A

Item No. Dimension(mm)
L E
PTN 2 - 9 1.9 13.8 4.8 4.1 2.3
PTN 2 - 10 1.9 14.8
PTN 2 - 12 1.9 16.8
PTN 2 - 13 1.9 17.8
PTN 2 - 18 1.9 22.8

4~6mm2(12-10) Imax=48A

Item No. Dimension(mm)
L E
PTN 5.5 - 13 2.8 19.8 6.8 5.6 3.4
