Insulated Cord End Terminals

Insulated Cord End Terminals

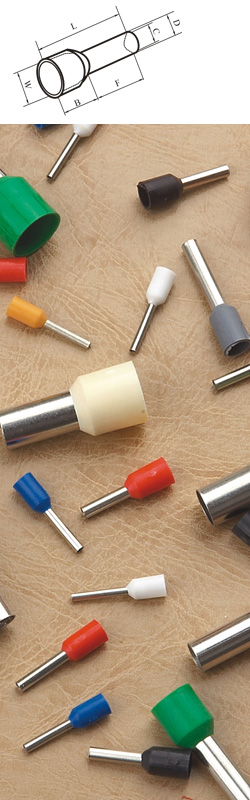

Item No. Dimension(mm) CLNLE SQ Color
F L W B D C A.W.G mm2
E0506 6.0 12.0 2.6 6.0 1.3 1.0 #22 0.5 Oranage
White
E0508 8.0 14.0
E0510 10.0 16.0
E0512 12.0 18.0
E7506 6.0 12.4 2.8 6.4 1.5 1.2 #20 0.75 White
Blue
E7508 8.0 14.6
E7510 10.0 16.4
E7512 12.0 18.4
E7518 18.0 24.4
E1006 6.0 12.4 3.0 6.4 1.7 1.4 #18 1.0 Yellow
Red
E1008 8.0 14.6
E1010 10.0 16.4
E1012 12.0 18.4
E1508 8.0 14.6 3.5 6.4 2.0 1.7 #16 1.5 Red
Black
E1510 10.0 16.4
E1518 18.0 24.4
E2508 8.0 15.2 4.0 7.0 2.6 2.3 #14 2.5 Blue
Grey
E2512 12.0 19.0
E2518 18.0 25.0
E4009 9.0 16.5 4.4 7.5 3.2 2.8 #12 4.0 Grey
Oranage
E4012 12.0 19.5
E4018 18.0 25.5
E6012 12.0 20.0 6.3 8.0 3.9 3.5 #10 6.0 Black
Green
E6018 18.0 26.0
E10-12 12.0 21.5 7.6 9.5 4.9 4.5 #7 10.0 Milky white
Brown green
E10-18 18.0 27.5
E16-12 12.0 22.2 8.8 10.2 6.2 5.8 #5 16.0 Green
Milkty white
E16-18 18.0 28.2
E25-16 16.0 29.0 11.2 13.0 7.9 7.5 #4 25.0 Brown green
Black
E25-22 22.0 35.0
E35-16 16.0 30.0 12.7 14.0 8.7 8.3 #2 35.0 Greyish brown
E35-25 25.0 39.0
E50-20 20.0 36.0 15.3 16.0 10.9 10.3 #1 50.0 Olive
E50-25 25.0 41.0
