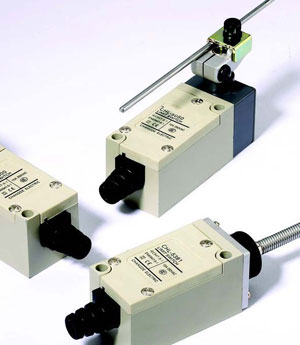

CHL Limit Switch
Features
Electrical life
>> Download PDF (412KB)
Ratings
| Models | CHL | 5000 | 5030 | 5050 | 5100 | 5200 | 5220 | 5300 | 5330 | 5381 | 5391 |
| Operating force | OF Max. | 750g-cm | 750g-cm | 750g-cm | 750g-cm | 900g-cm | 900g-cm | 150g | 150g | 150g | 550g-cm |
| Release force | RF Min. | 100g-cm | 100g-cm | 100g-cm | 200g | 200g | 200g | 30g | 30g | 30g | 100g-cm |
| Pre-travel | PT Max. | 20 º | 20 º | 20 º | 1.8mm | 1.8mm | 1.8mm | 30mm | 30mm | 30mm | 20 º |
| Tripping position | TP ± 10% | 22.5 º | 22.5 º | 22.5 º | 2.0mm | 2.0mm | 2.0mm | 22.5 º | 22.5 º | 22.5 º | 22.5 º |
| Movement differential | MD Max. | 10 º | 10 º | 10 º | 1.2mm | 1.2mm | 1.2mm | 14 º | 14 º | 14 º | 14 º |
| Over travel | OT Min. | 75 º | 75 º | 75 º | 4.0mm | 4.0mm | 4.0mm | 20mm | 20mm | 20mm | 75 º |
| Total travel | TT Min. | 95 º | 95 º | 95 º | 5.8mm | 5.8mm | 5.8mm | 50mm | 50mm | 50mm | 95 º |
Characteristics
| Double Break Mechanism | INO+INC Force Break snap action |
| Rated Voltage/Current | 10(4)A, 125, 250VAC/6(2)A, 380VAC For inductance Load, CosØ =0.4 |
| Contact Resistance | 25mΩ max. (initial value) |
| Insulation Resistance | 100mΩ min. (at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 HZ for 1 minute between each terminal and ground | |
| Electrical Life | 500,000 at 10A 250VAC Resistive |
| Mechanical Life | 10, 000, 000 operations min. (under rated conditions) |
| Operating Speed | 5mm/s to 0.5m/s |
| Degree of Protection | IP65 |
| Ambient Temperature Rised | Max 30℃ over ambient temperature at rated voltage/current |
| Conformed Standards | Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660 |
| Operating Temperature | -5℃ ~+65℃ (with no icing) |
| Storage Temperature | -5℃ ~+65℃ (with no icing) |
| Ambient Operating Humidity | 95 RH Max. |
| Shock Resistance | Mechanical durable: 1000m/s2 min. |
| Malfunction: 300m/s2 min. | |
| Vibration Frequency | Malfunction: 10 to 55HZ, 1.5mm double amplitude |
| Terminal Screw Torsional Force | 6-8 kgf-cm |
| Other Screw Torsional Force | Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm |
| Bare Wire Diameter | Ø2 Max |
| Cable Diameter | Ø12 Max(IP 65 if use cable 8-9) |
