WE Series

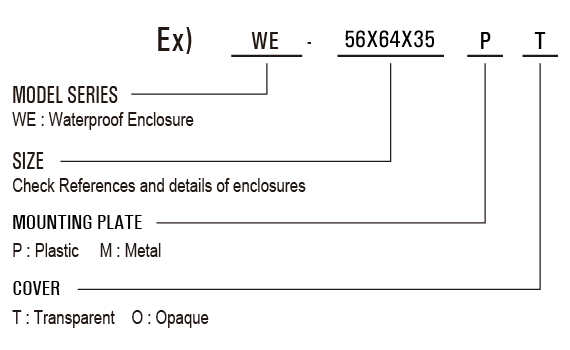

Order Code

Characteristic

• The products are free from corrosion, carries, superior insulation.
• They are available for installation of terminal substitution rail, terminal, relay and communication and join box etc.
• Temperature range: -40°C ~ 80°C
• Cover Material for ABS and PC available
• IP66 protection rating - more info on IP ratings

References and details of enclosures

Dimension (mm)			Base (mm)							Cover (mm)		Mounting plated (mm)
Width (W)	Height (H)	Depth (D)	W	W2	W3	H	H2	H3	H4	D1	D2	M1	M2
58	64	35	58	52	47	64	60	55	50	25	10	-	-
80	110	70	80	74	62	110	104	92	80	50	20	65	95
80	130	70	80	74	62	130	124	112	100	50	20	65	115
80	180	70	80	74	62	180	174	162	150	50	20	65	165
80	250	70	80	74	62	250	174	232	220	50	20	65	235
150	200	100	150	142	132	200	192	182	160	80	20	136	186
150	250	100	150	142	132	250	242	232	210	80	20	136	235
200	200	130	200	193	132	200	193	182	160	110	20	187	187
280	380	130	280	193	132	380	373	363	341	130	20	267	365

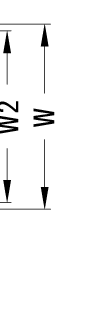

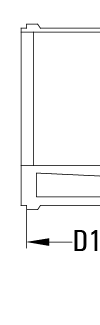

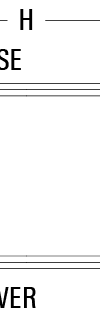

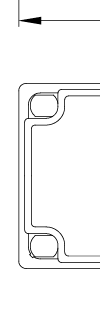

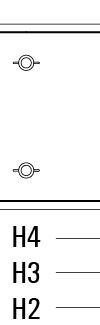

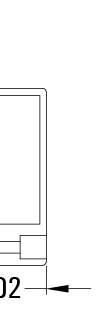

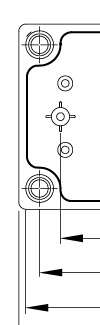

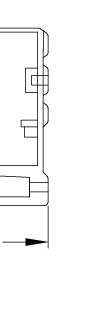

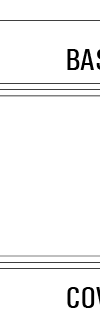

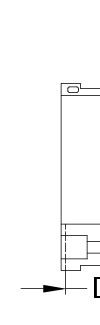

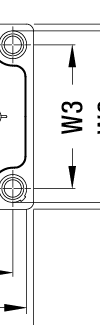

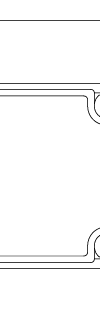

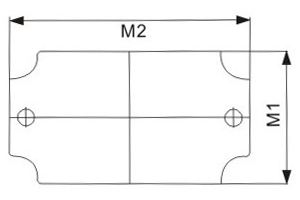

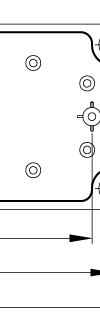

Dimensioneds
