Square Pipe Fuse Links With Knife Contacts

Home
Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts
Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts
Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts
Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts Square Pipe Fuse Links With Knife Contacts

Applications

  • Protection against overload and short-circuit in electric lines (type gG), also available for protection of semiconductor parts and equipment’s against short-circuit (type aR) and protection of motors (type aM).
  • Rated voltage up to 1140V; Rated current up to 1250A; Working frequency 50Hz AC; Rated breaking capacity up to120KA. Compliant with GB13539 and IEC269.

Design Features

  • Variable cross-section fuse element made from pure copper or silver sealed in cartridge made from high-duty ceramic. Fuse tube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. Dot-welding of fuse element ends to the terminals ensures reliable electric connection and forms insert knife type contacts. Indicator or striker may be attached to the fuse link to show cutout of fuse or to give various signals and to cut the circuit automatically.
Table 1
Types Rated voltage(V) Rate current Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig.

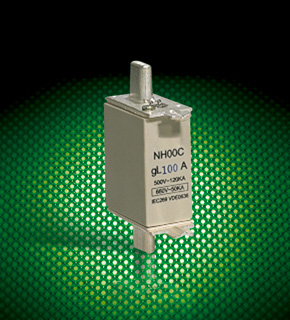

NH00C -- -- -- 500/660 10 ~ 100 000 Figure 1 138
NH00C NH00C NH00C NH00C NH00C NH00C
NH00C NH00C NH00C NH00C NH00C NH00C
Figure 1
NH00C
Table 2
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D H
NH00 RS31 -- -- 500/660 10 ~ 160 00 Figure 2 78 50.5 15 30 60 201
NH0 -- -- -- 500/660 6 ~ 160 00 Figure 2 125 67 15 30 60 267

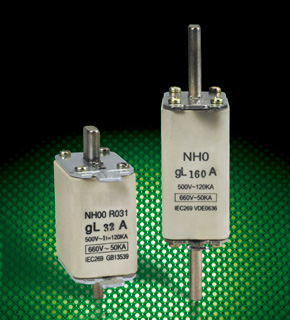

NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31
NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31 NH00, NH0, RS31
Figure 2
NH00, NH0, RS31
Table 3
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D H

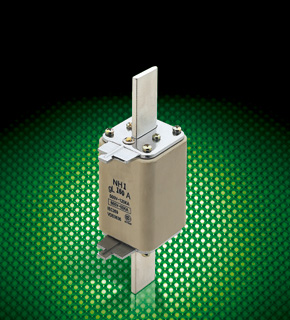

NH1 RS32 -- -- 500/660 32 ~ 250 1 Figure 3 135 67 20 46 58.5 447

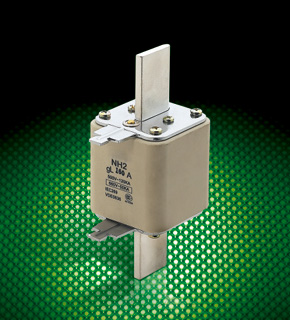

NH2 RS33 -- -- 500/660 80 ~ 400 2 Figure 3 150 68 30 58.5 68.5 727
NH3 RS34 -- -- 500/660 160 ~ 630 3 Figure 3 150 68 36 70 82 975

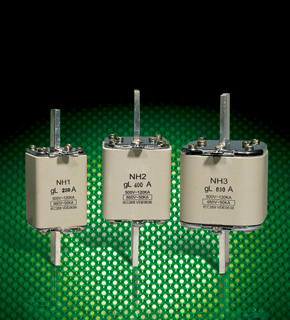

NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34
NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34 NH1, RS32, NH2, RS33, NH3, RS34
Figure 3
NH1, RS32, NH2, RS33, NH3, RS34
Table 4
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig.
NH1-S -- -- -- 500/660 16 ~ 160 1 Figure 4 312
NH1 (Small volume) NH1 (Small volume) NH1 (Small volume) NH1 (Small volume) NH1 (Small volume) NH1 (Small volume)
NH1 (Small volume) NH1 (Small volume) NH1 (Small volume) NH1 (Small volume) NH1 (Small volume) NH1 (Small volume)
Figure 4
NH1 (Small volume)
Table 5
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig.
NH2-S -- -- -- 500/660 35 ~ 250 2 Figure 5 458
NH3-S -- -- -- 500/660 200 ~ 400 3 Figure 5 727
NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume)
NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume) NH2 (Small volume), NH3 (Small volume)
Figure 5
NH2 (Small volume), NH3 (Small volume)
Table 6
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D H

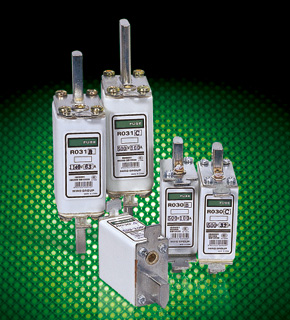

RO30A RS30A NT00C -- 500/660 4 ~ 100 000 Figure 6 78 49 15 21 48 123
RO30B RS30B NT00C -- 500/660 4 ~ 100 000 Figure 6 78 49 15 21 48 117
RO30C RS30C 3NA3 3NE18.. 500/660 10 ~ 100 000 Figure 6 78 49 15 21 52.5 132
RO31A RS31A PH00 -- 500/660 10 ~ 160 00 Figure 6 78 49 15 30 53 178.5
RO31B RS31B NT0 3NE41.. 500/1140 6 ~ 160 0 Figure 6 125 68 15 29 61.5 278
RO31C RS31C NT1 -- 500 32 ~ 200 1 Figure 6 135 38 15 29 61.5 293.5
RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C
RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C
Figure 6
RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C
Table 7
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D H
NT00 RS31 RT16-00 3NE80.. 500/660 6 ~ 160 00 Figure 7 78 49 15 29 56 175
NT0 -- RT16-0 -- 500/660 6 ~ 160 0 Figure 7 125 125 15 29 56 252

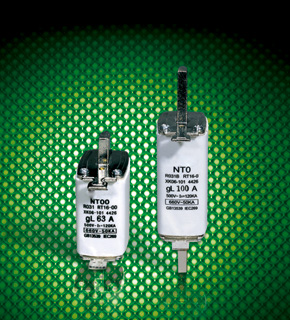

NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0
NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0 NT00, NT0, RS31, RT16-00, RT16-0
Figure 7
NT00, NT0, RS31, RT16-00, RT16-0
Table 8
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D H
RO32 RS32 NT1, RT16-1, 3NA1, RT20-1 3NE12.. 500/660 32 ~ 250 1 Figure 8 135 68 20 48 60 455
RO32A RS32A -- -- 1140 200   Figure 8 172 110 19.5 44 58 570
RO32B RS32B NT1, RT16-1 -- 500 250 1 Figure 8 135 68 20 40 68 393
RO33 RS33 NT2, RT16-2, 3NA1, RT20-2 3NE13.. 500/660 80 ~ 400 2 Figure 8 150 68 25 58 70 650
RO33B RS33B RT16-2 -- 500 400 2 Figure 8 150 68 25 52 71 580
RO34 RS34 NT3, RT16-3, NH3, RT20-3 3NE14.. 500/660 160 ~ 630 3 Figure 8 150 68 32 67 80 880
RO35 RS35 -- -- 500 6 ~ 160 1 Figure 8 135 68 20 30 53 249
RO36 RS36 EAPO -- 500 32 ~ 200   Figure 8 135 68 20 40 59 356
RO39A RS39A NT4a -- 380/500 500 ~ 1250 4a Figure 8 200 90 50 97 113 2140
RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A
RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A
Figure 8
RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A
RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A
Table 9
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D G E F H

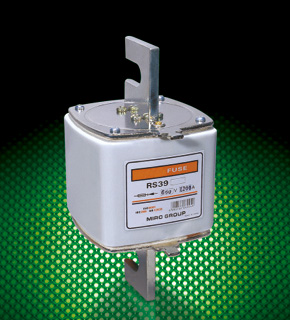

RO34K RS34K -- 3NC8 500/660 150 ~ 630   Figure 9 140 68 32 70 6 108 10.5 85 810
RO38 RS38 -- 3NE3626 -- 200 ~ 630   Figure 9 160 86 32 70 6 126 11 81.5 1050
RO39 RS39 NT4, RT17 -- 500 500 ~ 1250 4 Figure 9 200 90 50 97 8 150 16.5 113 2470
RO39B RS39B NT4B, RT17 -- 500 500 ~ 1000 4 Figure 9 200 79 50 87.5 8 150 17 114.5 2100
Note: The joint holes of two-horizontal type is allowed to be changed to one horizontal one straight type or twostraight type.
RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B
RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B
Figure 9
RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B
Table 10
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight(g)
Ours Cross-reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig.

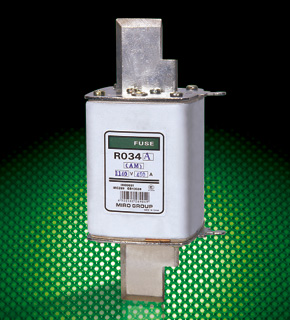

RO34A RS34A 8SY5023 -- 1140 450 -- Figure 10 1066
RO34A, RS34A RO34A, RS34A RO34A, RS34A RO34A, RS34A RO34A, RS34A RO34A, RS34A
RO34A, RS34A RO34A, RS34A RO34A, RS34A RO34A, RS34A RO34A, RS34A RO34A, RS34A
Figure 10
RO34A, RS34A
Table 11
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D E F G H
RO31Z RS31Z RT16A-00 -- 500/660 35 ~ 125 00 Figure 11 78 49 15 29 15 22.5 -- 59.5 183
RO32Z RS32Z RT16A-1 -- 500/660 200 ~ 250 1 Figure 11 135 68 20 48 25 14.5 16 60 390
RO33Z RS33Z RT16A-2 -- 500/660 315 ~ 400 2 Figure 11 150 68 25 58 30 14.5 19 70 683
RO34Z RS34Z RT16A-3 -- 500/660 500 ~ 630 3 Figure 11 150 68 32 67 30 14.5 19 82 880
NTA-1 -- -- -- 500/660 200 ~ 250 1 Figure 11 135 68 20 48 8 26.5 -- 60 380
NTA-2 -- -- -- 500/660 315 ~ 400 2 Figure 11 150 68 25 58 8 32 -- 70 673
NTA-3 -- -- -- 500/660 500 ~ 630 3 Figure 11 150 68 32 67 8 40 -- 82 870
RO36Z RS36Z -- -- 500/660 125 ~ 160   Figure 11 135 68 20 40 25 20 11.5 61 369

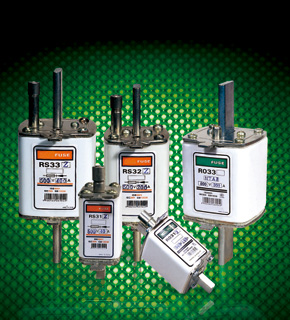

RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z
RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z
Figure 11
RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z
Table 12
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D E F G H

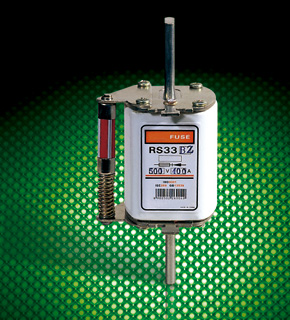

RO32BZ RS32BZ -- HLS1 500 125 ~ 250 1 Figure 12 135 68 20 50.5 9 24.5 26 68 380
RO33BZ RS33BZ -- HLS2 500 250 ~ 400 2 Figure 12 150 68 25 66.5 9 29 35 71 675
RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ
RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ RO32BZ, RS32BZ, RO33BZ, RS33BZ
Figure 12
RO32BZ, RS32BZ, RO33BZ, RS33BZ
Table 13
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Size Fig. A B C D H

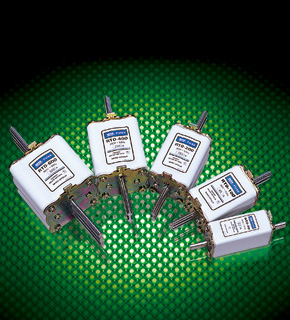

RTO-50 -- -- -- 380 10 ~ 50 -- Figure 13 103 66 10.3 25 52 189.5
RTO-100 -- -- -- 380 20 ~ 100 -- Figure 13 125 67 18 40 52 313
RTO-200 -- -- -- 380 50 ~ 200 -- Figure 13 135 67 23 46 58 404.5
RTO-400 -- -- -- 380 160 ~ 400 -- Figure 13 145 67 30 55 66 601
RTO-600 -- -- -- 380 250 ~ 600 -- Figure 13 165 67 36 66 77 855
RTO-1000 -- -- -- 380 500 ~ 1000 -- Figure 13 280 90 50 85 100 2050
RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000
RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000 RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000
Figure 13
RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000

Characteristics Curve

Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A
Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A
Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A Time-current rang of  “gG” fuse links 2A~1000A
Time-current rang of “gG” fuse links
Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A
Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A
Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A Time-current rang of  “gG” fuse links 4A-1250A
Time-current rang of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links
