Applications

  • Supporters for bolting fuses in electric lines are capable of working under the heat caused by rated current and prospective short-circuit impacting current up to 100KA.
  • Rated insulation voltage up to 1000V; Working frequency50Hz AC; Rated current up to 630A. Compliant with GB13539 andIEC269.

Design Features

  • There are two kinds of structures for this type of fuse bases: One is made up with fuse carrier, supporter/base (Figure 12.1).The bolting fuse link is installed to the carrier, and then it is inserted to static contacts of the supporter/base. There is no carrier for the other structure, where the bolting fuse is directly installed to the static contacts of the supporter/base. The company can also produce other non-standard bases at the customers’ requirements
Table 1
Models Fuse Link Rated insulation voltage (V) Convetional free air thermal current (A) Dimensions/ Sizes(mm) Weight (g)
Fig. A1 A2 A3 B1 B2 H1 H2 Φd
RG0K RG0K 660 32 Figure 1 34 0 68 0 26 34 49 5 92
RG2 RG2, RGS2 660 100 Figure 1 51 6.5 105 13 35 44 66 5.5 264
RG7 RG4, RGS7 660 150 Figure 1 91 7 129 19 50 62 94 7.5 679
Special Fuse Bases Special Fuse Bases Special Fuse Bases Special Fuse Bases
Special Fuse Bases Special Fuse Bases Special Fuse Bases Special Fuse Bases
Special Fuse Bases Special Fuse Bases Special Fuse Bases Special Fuse Bases
Figure 1
Special Fuse Bses RG
Table 2
Models Fuse Link Rated insulation voltage (V) Convetional free air thermal current (A) Dimensions/ Sizes(mm) Weight (g)
Fig. A1 B1
FB77 RS77, RS77B
RS77C, RS84
660 630 Figure 2 221 40 985
FB77A RS77, RS77B
RS77C, RS84
660 630 Figure 2 214 30 905
Special Fuse Bses FB77 Special Fuse Bses FB77 Special Fuse Bses FB77
Special Fuse Bses FB77 Special Fuse Bses FB77 Special Fuse Bses FB77
Special Fuse Bses FB77 Special Fuse Bses FB77 Special Fuse Bses FB77
Figure 2
Special Fuse Bses FB77
Table 3
Models Fuse Link Rated insulation voltage (V) Convetional free air thermal current (A) Dimensions/ Sizes(mm) Weight (g)
FB711C RSO, RGS30A
RSO-250V, RGS-30B
RS711B, RS711C
NGT00
800 200 Figure 3 182
Special Fuse Bses FB711C Special Fuse Bses FB711C
Special Fuse Bses FB711C Special Fuse Bses FB711C

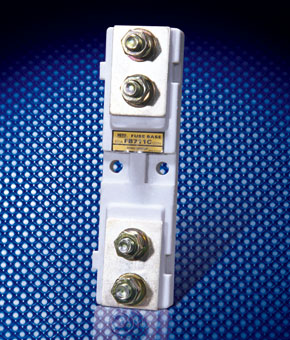

Figure 3
Special Fuse Bses FB711C
Table 4
Models Fuse Link Rated insulation voltage (V) Convetional free air thermal current (A) Dimensions/ Sizes(mm) Weight (g)
FB73B NGT1~3, RS73B
RS75A, RS75B
1000 630 Figure 4 826
Special Fuse Bses FB73B Special Fuse Bses FB73B Special Fuse Bses FB73B
Special Fuse Bses FB73B Special Fuse Bses FB73B Special Fuse Bses FB73B
Special Fuse Bses FB73B Special Fuse Bses FB73B Special Fuse Bses FB73B

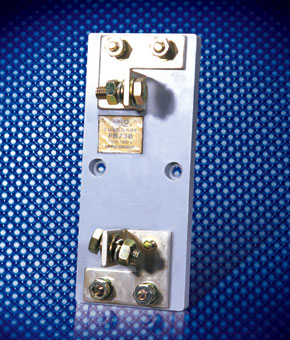

Figure 4
Special Fuse Bses FB73B
Table 5
Models Fuse Link Rated insulation voltage (V) Convetional free air thermal current (A) Dimensions/ Sizes(mm) Weight (g)
FB20C RO20C 1000 200 Figure 5 632
Special Fuse Bses FB20C Special Fuse Bses FB20C Special Fuse Bses FB20C
Special Fuse Bses FB20C Special Fuse Bses FB20C Special Fuse Bses FB20C
Special Fuse Bses FB20C Special Fuse Bses FB20C Special Fuse Bses FB20C

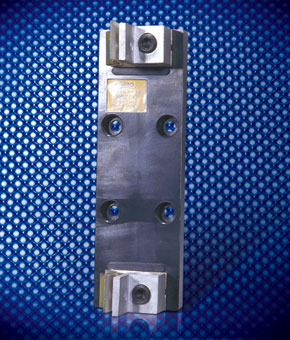

Figure 5
Special Fuse Bses FB20C
Table 6
Models Fuse Link Rated insulation voltage (V) Convetional free air thermal current (A) Dimensions/ Sizes(mm) Weight (g)
NT00S-3J - 600 160 Figure 6 845
Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J
Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J
Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J
Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J Special Fuse Bses NT00S-3J

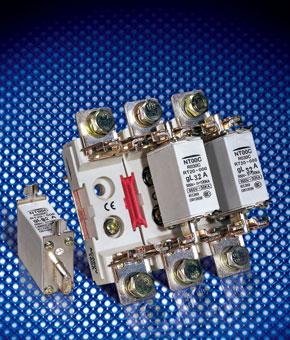

Figure 6
Special Fuse Bses NT00S-3J
RTO-600
