8" Ratchet Crimping Tools(European Style)

8" Ratchet Crimping Tools
8" Ratchet Crimping Tools

Features:

  • The components of the ratchet crimping tools are made of special steel.
  • Designed according to human factors engineering, it can save 50% energy when crimping.
  • Precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Accurate adjustment before ex-works delivery.
  • Due best handle grasping position, light and compact structure and handle design ensure perfect crimping effect.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

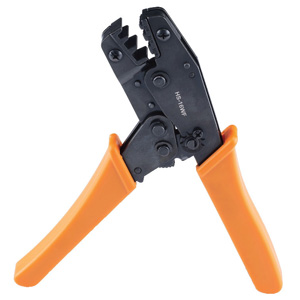

HS-16WF
Cord End Terminals
6~16 10-6 203 0.4

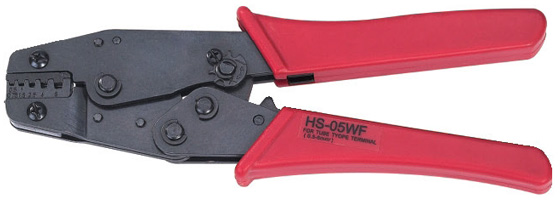

HS-05WF 0.5~6.0 20-10 203 0.4
HS-06WF 0.25~6.0 24-10 203 0.4

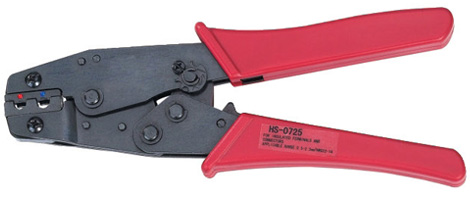

HS-0725
Insulated Terminals
0.5~2.5 20-14 203 0.4

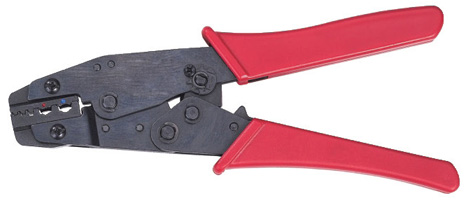

HS-02WF2C
Insulated Terminals
Cord End Terminals
0.5~2.5 20-14 203 0.4

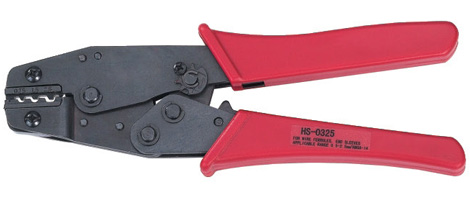

HS-0325
Non-Insulated Terminal
0.75~2.5 20-14 203 0.4

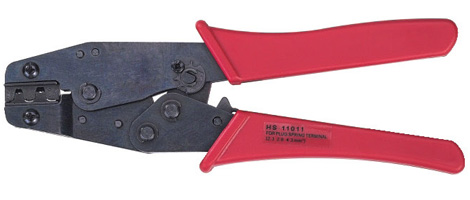

HS-11011
Non-Insulated Terminal
0.5~2.5 20-14 203 0.4

Top

9" Ratchet Crimping Tools(European Style)

9" Ratchet Crimping Tools
9" Ratchet Crimping Tools

Features:

  • The components of the ratchet crimping tools are made of special steel.
  • Designed according to human factors engineering, it can save 50% energy when crimping.
  • Precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Accurate adjustment before ex-works delivery.
  • Due best handle grasping position, light and compact structure and handle design ensure perfect crimping effect.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

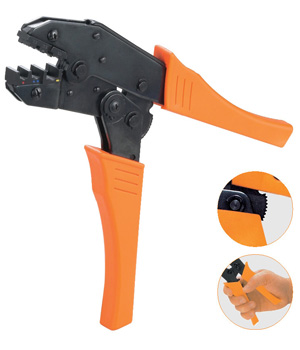

HS-30J
Insulated Terminals
0.5~6.0 22-10 230 0.6

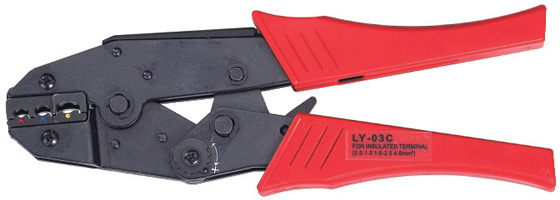

LY-03C 0.5~6.0 22-10 230 0.6

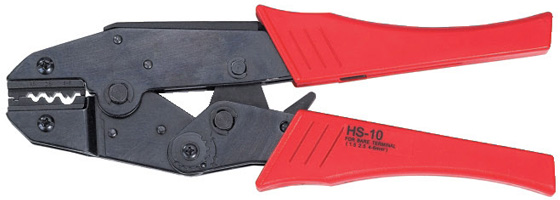

HS-10
Non-Insulated Terminals
1.5~6.0 16-10 230 0.6

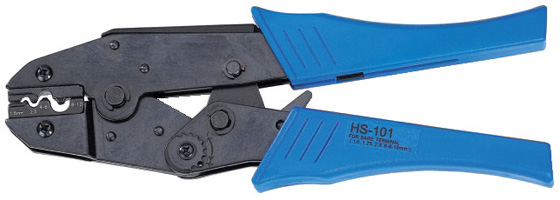

HS-101 1.5~10 16-8 230 0.6

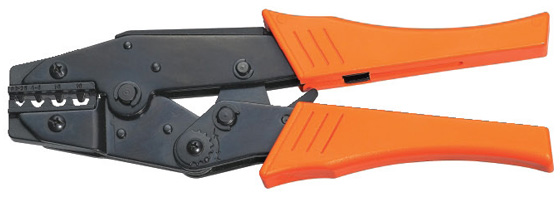

HS-1016 0.5~10 20-8 230 0.6

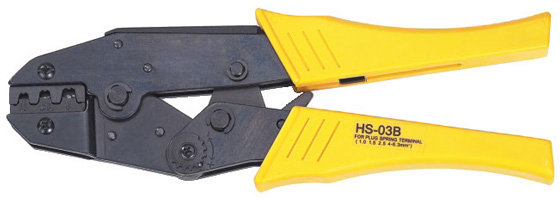

HS-03B
Non-Insulated Terminals
1.5~6.0 16-10 230 0.6

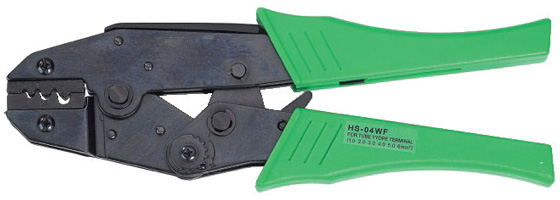

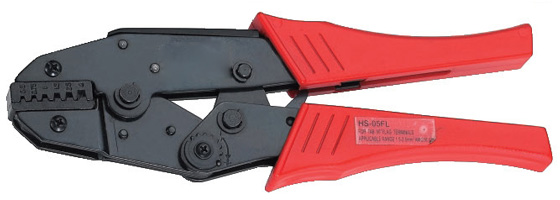

HS-04WFL
Cord End Terminals
0.5~4.0 20-12 230 0.6
HS-04WF 1.0~6.0 20-10 230 0.6

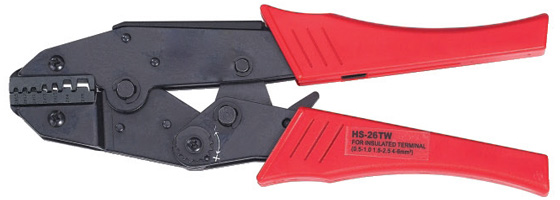

HS-26TW 2x0.5~6.0 2x20-10 230 0.6

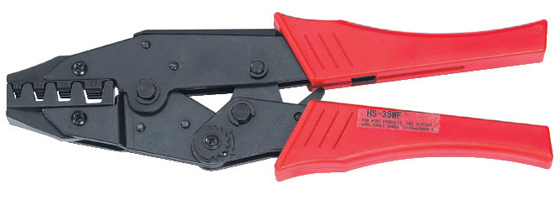

HS-35WF 10~35 8-2 230 0.6

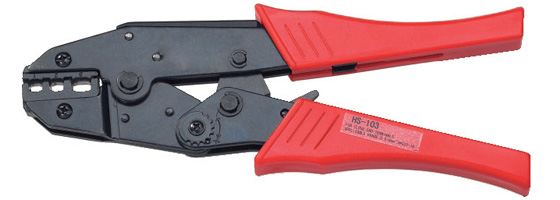

HS-103
Crimping Cap
1.5~10 16-8 230 0.6

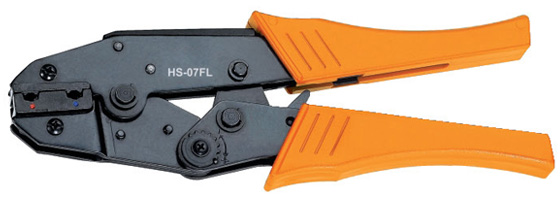

HS-07FL
1.25/2.5 Flag type receptacles
0.5~2.5 20-14 230 0.6
HS-05FL
4.8/6.3 Flag type receptacles
0.5~2.5 20-14 230 0.6
HS-06WF2C
Insulated Terminals
Cord End Terminals
0.5~2.5 20-14 230 0.6

Model Range of Application Capacity Connector Type Cable Type Length
(mm)
Weight
(kgs)

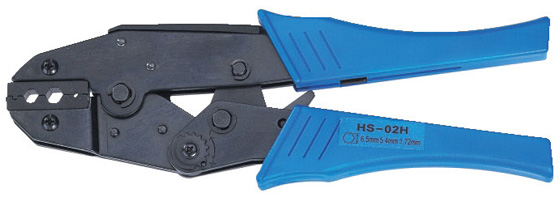

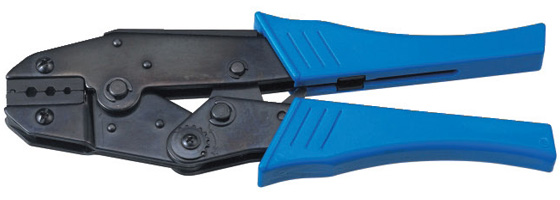

HS-02H2
Coaxial Cable
0.315"/ 0.252"/ 0.068" HEX
0.042" SQ
BNC/TNC, Mini-UHF RG59, RG62
Belden 8281, 50,
75 ohm
230 0.6
HS-02H 0.315"/ 0.252"/ 0.068" HEX
0.042" SQ
BNC/TNC, Mini-UHF RG59, RG62
Belden 8281, 50,
75 ohm
230 0.6

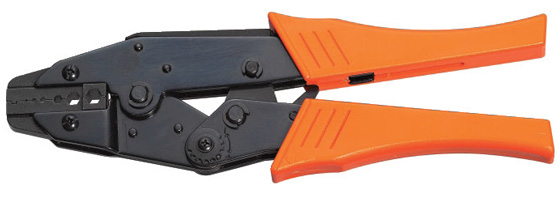

HS-02H1 0.346"/ 0.319"/ 0.256" HEX CATV "F" Type RG59/62
Belden 8281, 50,
75 ohm
230 0.6

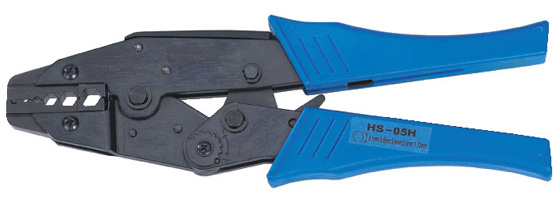

HS-05H 0.178"/ 0.255"/ 0.278"/
0.068"/ 0.041" HEX
HDTV BNC/TNC
Tue 75-ohm
Belden 1855A, 1865A,
1505A, 1505F, 1694A,
1694F, 179DT
230 0.6

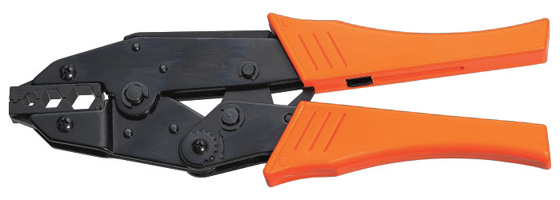

HS-457 0.32"/ 0.210"/ 0.185" HEX BNC/TNC RG6, RG58 230 0.6

Top

Ratchet Crimping Tools(Japanese Style)

Ratchet Crimping Tools(Japanese Style)
Japanese Style

Features:

  • The components of the ratchet crimping tools are made of special steel.
  • Designed according to human factors engineering, it can save 50% energy when crimping.
  • Precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Accurate adjustment before ex-works delivery.
  • Due best handle grasping position, light and compact structure and handle design ensure perfect crimping effect.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

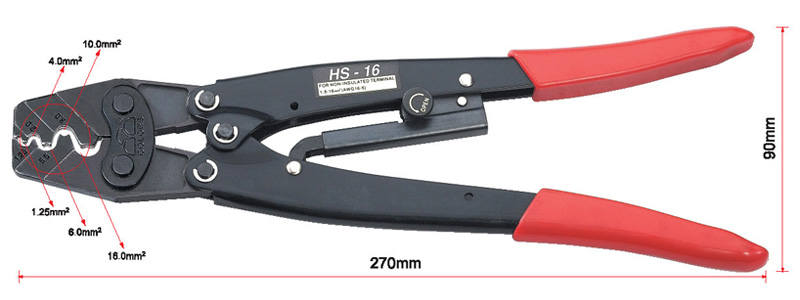

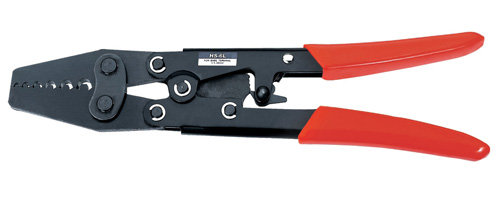

HS-6L
Non-Insulated Terminals
1~6.0 20-10 250 0.35

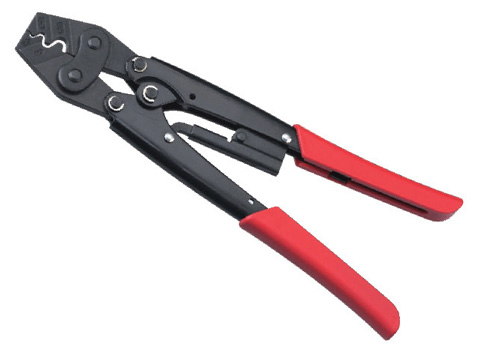

HD-6 0.5~6.0 20-10 205 0.21
HS-16 1.25~16 20-6 270 0.55
HS-8 1.25~8 16-8 270 0.55

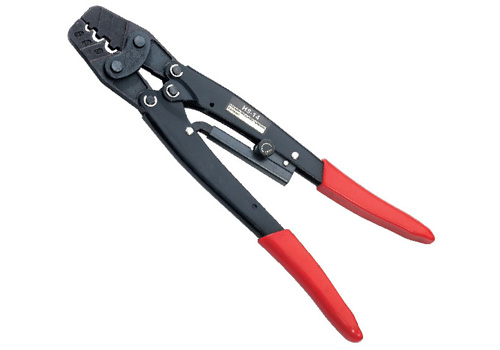

HS-14 5.5~14 10-6 270 0.55

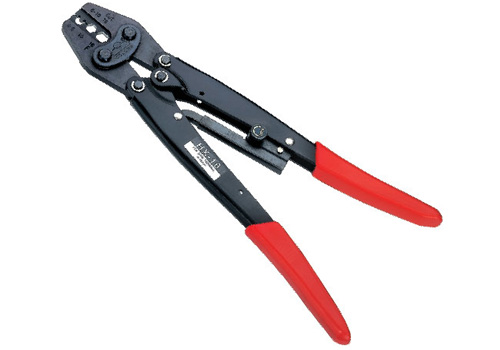

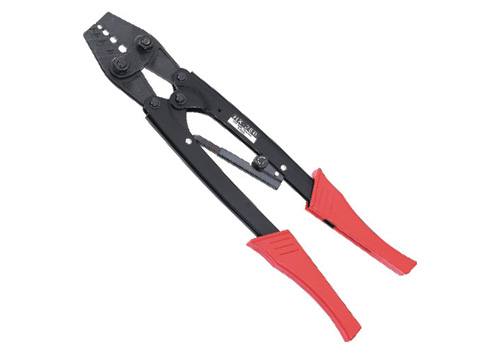

HX-26B 6~25 10-4 354 0.85
HX-16 6~16 10-6 270 0.55

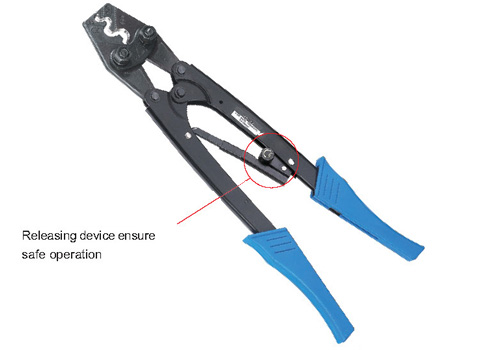

HS-22 5.5~25 10-4 354 0.85

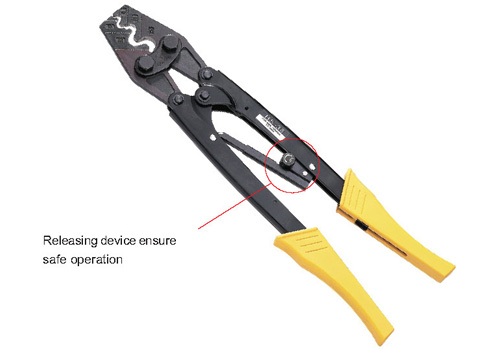

HS-38 5.5~38 10-2 356 0.85

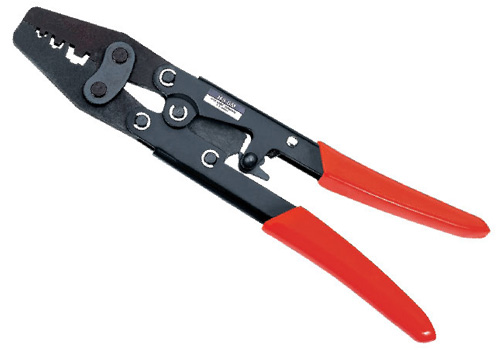

HS-6M
Crimping Cap
1.5~10 16-8 250 0.35

Top

FSW Series

Ratchet Crimping Tools
FSW Series

Features:

  • FSW-1011 is for crimping non-insulated receptacles.
  • Crimping range: 22-14AWG (0.5~2.5mm2).
  • Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Release locking if operates error.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

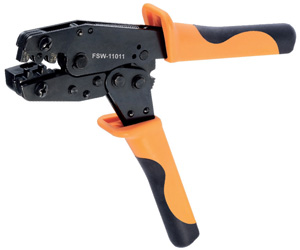

FSW-11011
Non-Insulated Terminal
0.08~16 12-4 190 0.47
FSW-06WF
Cord End Terminals
0.5~6 12-4 200 0.47

Top

FST Series

Ratchet Crimping Tools
FST Series

Features:

  • For connecting BNC and TNC coaxial cable plug and RG58, RG59, RG62 and RG71.
  • RG62 and RG71 can only use the die sets of RG59.
  • The components of the ratchet crimping tools are made of specisl steel.
  • Designed according to human factors engineering,it can save 50% energy when crimping.
  • Precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Accurate adjustment before ex-works delivers.
  • Due best handle grasping position, light and compact structure and handle design ensure perfect crimping effect

Technical Data

Model Connector Type Cable Type Capacity Remarks
FST-2609
BNC/TNC,
3-piece HDTV
Belden 8281, 7505 0.324"/ 0.068" HEX
0.042" SQ
Kings, ADC, Switchcraft,
Amphenol HDTV
FST-2611 RG59,
Belden 1505, 8241
0.255"/ 0.068" HEX
0.042" SQ
FST-2612 RG6,
Belden 1694A, 1855A
0.275"/ 0.178" HEX
0.042" SQ
ADC, GEM,
Trompeter HDTV
FST-2613 Belden 1694A, NT735, 1855A 0.278"/ 0.197" HEX
0.042" SQ
ADC HDTV

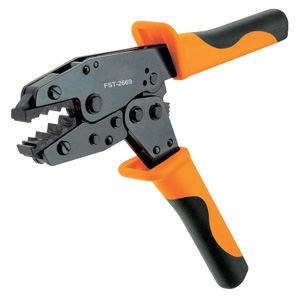

FST-2669 Belden 1855A, 1865A, 1505A,
1505F, 1694A, 1694F, 179DT
0.278"/0.255"/0.178"
0.041" HEX
Kings, ADC, B&L,
Trompeter , Switchcraft, Amphenol
FST-2616
BNC/TNC
RG174 and small cable 0.178"/ 0.068" HEX Crimps pins,
Ferrules and Sleeve
FST-2617 RG58/ 59/ 62 AU 0.255"/ 0.213"/0.068" HEX
FST-2619 RG59/ 62 AU,
Belden 8281
0.324"/0.255"/0.068" HEX

Top
