Modular Distribution Box

TSM

Home

Order Code

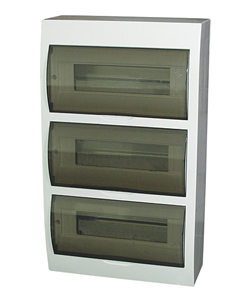

Surface Mounting
Surface Mounting
Flush Mounting
Flush Mounting

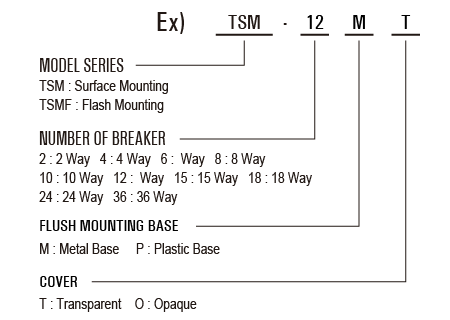

    Order Code
    Note:
  • Surface Mounting only Plastic Base
  • Flush Mounting box standard base for Plastic Base
  • Cover standard for Transparent

Technical Data

Surface Mounting

Type Dimension(mm)
L W H
TSM-2 90 140 60
TSM-4 112 210 100
TSM-6 148 210 100
TSM-8 184 210 100
TSM-10 222 210 100
TSM-12 256 210 100
TSM-15 312 210 100
TSM-18 364 222 100
TSM-24 270 325 100
TSM-36 305 473 100
TSM-45 473 326 100

Dimensioned

Dimension Dimension Dimension Dimension Dimension
Dimension Dimension Dimension Dimension Dimension
Dimension Dimension Dimension Dimension Dimension
Dimension Dimension Dimension Dimension Dimension
Dimension Dimension Dimension Dimension Dimension
Surface Mounting

Flush Mounting
Cover

Type Dimension(mm)
L W H B
TSMF-2 95 150 27 75
TSMF-4 136 222 27 86
TSMF-6 172 222 27 122
TSMF-8 208 222 27 158
TSMF-12 280 222 27 230
TSMF-15 334 222 27 283
TSMF-18 398 252 27 338
TSMF-24 300 345 27 232
TSMF-36 341 503 27 265
TSMF-45 365  505   27  285

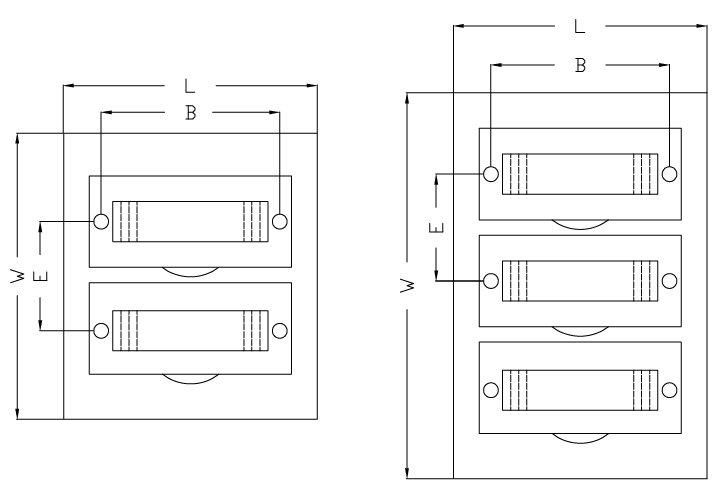

Dimensioned

Dimension
Cover

Metal Base

Type Dimension(mm)
L W H
TSMF-2 99 140 60
TSMF-4 107 190 85
TSMF-6 143 190 85
TSMF-8 179 190 85
TSMF-10 222 200 85
TSMF-12 250 190 85
TSMF-15 306 190 85
TSMF-18 361 217 85
TSMF-24 252 310 85
TSMF-36 290 475 85
TSMF-45 473 326 76

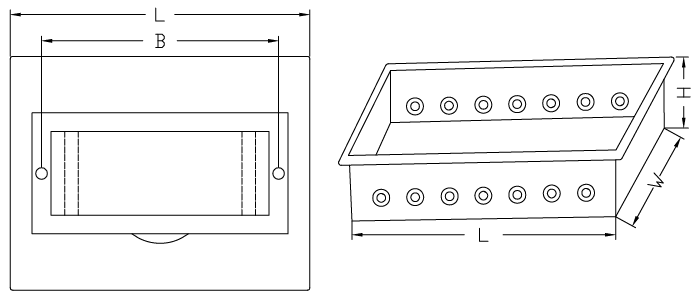

Dimensioned

Dimension
Metal Base

Plastic Base

Type Dimension(mm)
L W H
TSMF-2 90 140 60
TSMF-4 112 200 66
TSMF-6 150 200 66
TSMF-8 184 200 66
TSMF-10 222 200 66
TSMF-12 256 200 66
TSMF-15 310 200 66
TSMF-18 365 220 76
TSMF-24 257 310 76
TSMF-36 293 455 76
TSMF-45 473 326 76

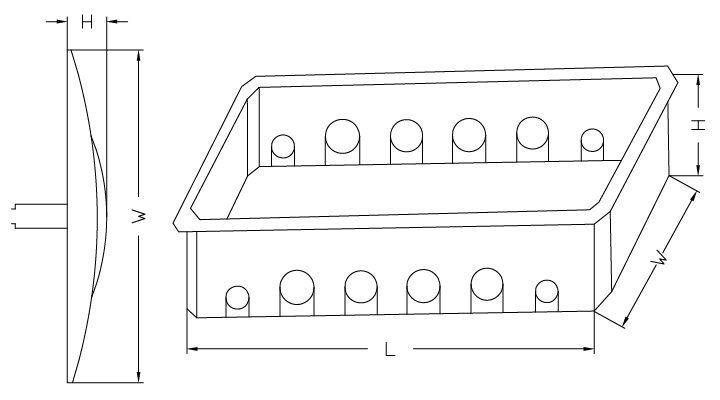

Dimensioned

Dimension
Plastic Base

Top
