General-Purpose Relay
55.02, 55.04
55.02 55.04

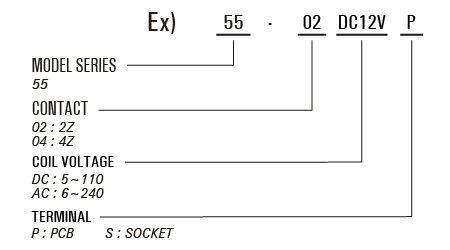

Order Code
Terminal
Connection
Technical Data
>> Download PDF (250KB)
Technical Specification
| Insulation Resistance | ≥500mΩ (500VDC) |
| Dielectric strength | Between coil and contacts ≥1500VAC1min |
| Between open contacts ≥1000VAC1min | |
| Between contacts of different poles ≥1500VAC1min | |
| Operate/ Release time | ≤25ms/ 25ms |
| Terminal Type | PCB and Socket |
Contact Specification
| Contact Form | 2Z, 2H, 2D 4Z, 4H, 4D |
| Contact Resistance | ≤50mΩ (1A 6VDC) |
| Contact Material | AgCdO, AgSnO2 |
| Contact Capacity | 55.02: 10A 250VAC/ 30VDC 55.04: 5A 250VAC/ 30VDC |
Coil Specification
| Rated Coil Power | 0.9W 1.2VA |
Coil Date
| Nominal voltage VDC |
Operate voltage VDC |
Release voltage VDC |
Coil resistance Ω±10% |
Nominal voltage VAC |
Operate voltage VAC |
Release voltage VAC |
Coil resistance Ω±10% |
| 5 | 4.0 | 0.50 | 28 | 6 | 4.80 | 1.80 | 12 |
| 6 | 4.8 | 0.60 | 40 | 12 | 9.60 | 3.60 | 42 |
| 12 | 9.6 | 1.20 | 160 | 24 | 19.20 | 7.20 | 168 |
| 24 | 19.2 | 2.40 | 640 | 48 | 38.4 | 14.40 | 675 |
| 48 | 38.4 | 4.80 | 2560 | 120 | 96.0 | 36.00 | 3500 |
| 110 | 88.0 | 11.00 | 12100 | 220/240 | 176.0 | 66.00 | 14000/16500 |

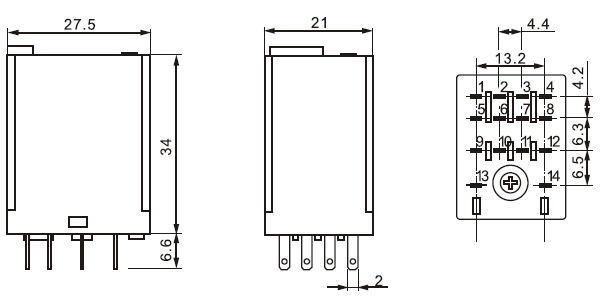

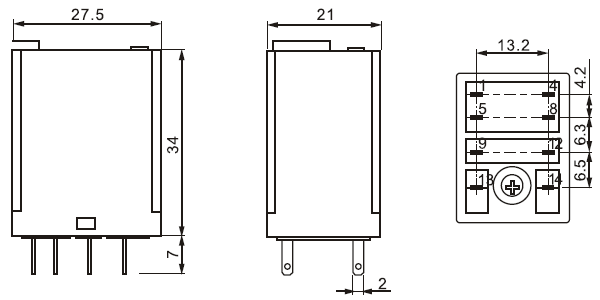

Dimension
 |
 |

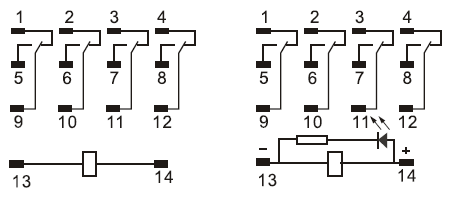

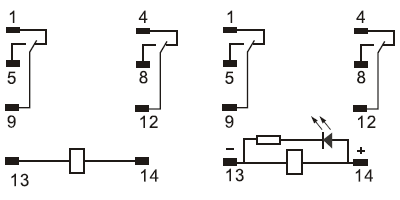

Wiring Diagram
 |
 |
