LC1-F

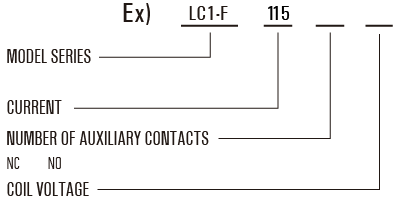

Model Reference

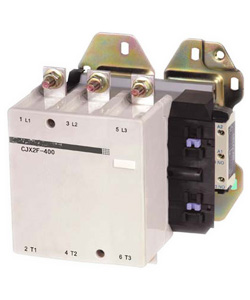

LC1-F400

LC1-F780

Model Reference

Application

LC1-F series AC contactor is applicable in the circuits up to the rated voltage 1000V AC 50Hz or 60Hz,rated curent 780A, for long distance breaking circuit and frequently starting or control the motor. It also can be used for the control of distribution circuits of rated current from 200A TO 1600A.

Technical Data

Type		LC1-F115	LC1-F150	LC1-F185	LC1-F225	LC1-F265	LC1-F330	LC1-F400	LC1-F500	LC1-F630
Rated operation current (A)	AC-3	115	150	185	225	265	330	400	500	630
Standard power ratings of 3-phase motors AC-3(KW)	220V	30	40	55	63	75	100	110	147	200
	380V	55	75	90	110	132	160	200	250	335
	415V	59	80	100	110	140	180	200	280	375
	440V	59	80	100	110	140	200	250	295	400
	500V	75	90	110	129	160	200	257	335	400
	660V	80	100	110	129	160	200	280	335	450
	1000V	65	65	100	100	147	160	185	335	450
