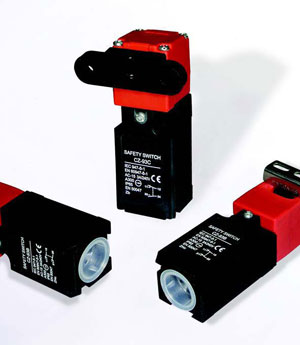

CZ-93 Safety Key Interlock Switch

Home
CZ-93 Safety Key Interlock SwitchCZ-93 Safety Key Interlock Switch
Safety key interlock switches operate by detecting the opening of guards such as doors and gates. When the gate is open and the safety interlock is disengaged, its positive opening contacts shut down.
Safety key interlock switches are available in any of three retention forces: 7 lbs. to perform consistently and reliably on average size doors and gates, 22 lbs. to hold very heavy doors closed, and 2 lbs. for light plexiglass covers and guards

Model Designations

Model Designations
Designation Signal Description
1. Type CZ-93 Safety switch
2. Type of contact blocks fitted B 2B (2NC)
C 1A1B (NO-NC)
3. Conduit entries PG PG 13.5XP1.5
PT PT1/2X14UNC
4. Actuating keys None None
01 Horizontal
02 Vertical
03 Adjustable

>> Download PDF(274KB)

  • Ratings
Rated Voltage (V) Noninductive Load (A) Inductive Load (A)
Resistance Load Lamp Load Inductive Load Motor Load
NC NO NC NO NC NO NC NO
125VAC
250VAC
400VAC
10
10
10
3
2
1.5
1.5
1
0.8
10
10
3
5
3
1.5
2.5
1.5
0.8
8VDC
14VDC
30VDC
125VDC
250VDC
10
10
6
0.8
0.4
6
6
4
0.2
0.1
3
3
3
0.2
0.1
10
10
6
0.8
0.4
6
6
4
0.2
0.1
  • Characteristics
Rating 3A 240VAC (A300)
Operating speed 0.1m-0.5m/s
Operating frequency 30 operations/minute
Contact resistance 25mΩ max. (initial value)
Insulation resistance 100mΩ min. (at 500VDC)
Rated insulation voltage (UI) 400V
Dielectric strength AC2500V/Umip 4KV
Vibration frequency 10-55HZ,1.5mm double amplitude
Shock Mechanical: Approx. 1, 000m/Sec2 (about 100G'S)
Electrical: Approx. 300m/Sec2 (about 30G'S)
Ambient temperature -30℃ to +70℃
Humidity <95% RH
Life Mechanical: 10,000,000 operations above
Electrical: 150,000 operations above
Degree of protection IP65 (EN60947-5-1)
Short-circuit protective device 10A fuse
Weight Approx. 76g
  • Operating Characteristics
Key plug in force Max. 147.N(1,500gf)
Key pull out force Max. 29.42N(3,000gf)
Pretravel 6 ± 3mm
Total Travel (28mm)
Force required to have positive Min. 58.84N (6,000gf)
Positive opening travel Min. 10mm
  • Use attention affair
To prevent the wear and the space should be within 1mm between the key and middle of the insert hole.

When in use,there should put a plate on the top to prevent the key overinsert.To prevent nonmovement ,the space between the plate and the switch should be under 3 mm.

Required to have positive machine

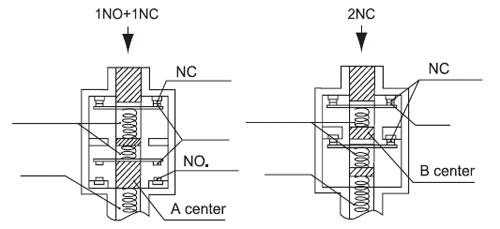

When the contact block get fire,press on the middle of the key structure, the NC strict leaving structure can push the contact block a way cut off the movement.

Top

Appearance and Dimension

CZ-93BPG BPT CPG CPT
CZ-93BPG BPT CPG CPT
Dimension

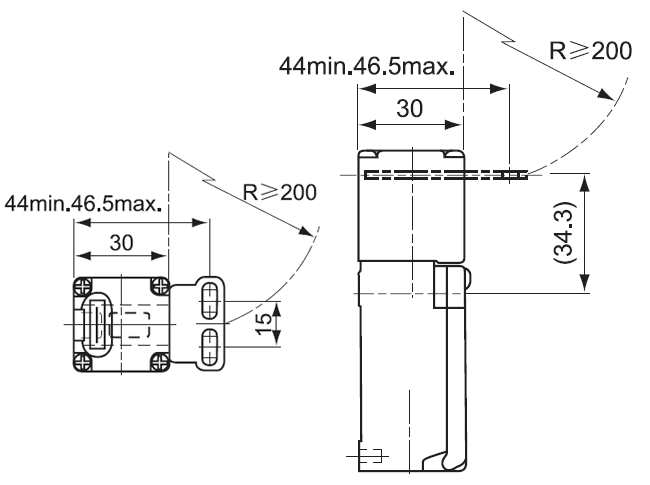

CZ-93BPG01 BPT01 CPG01 CPT01
CZ-93BPG01 BPT01 CPG01 CPT01
Dimension

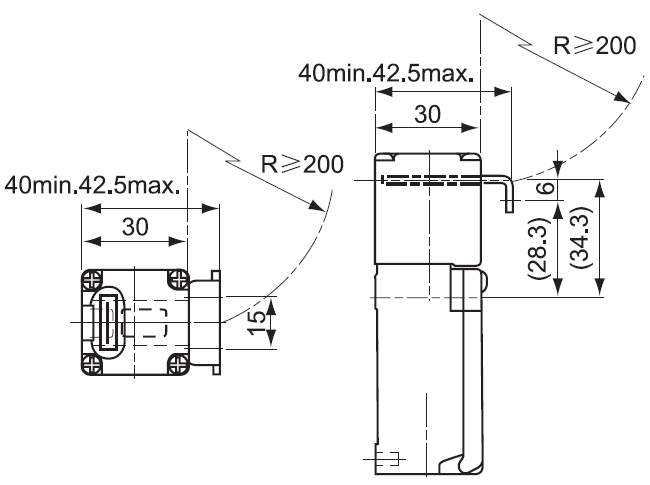

CZ-93BPG02 BPT02 CPG02 CPT02
CZ-93BPG02 BPT02 CPG02 CPT02
Dimension

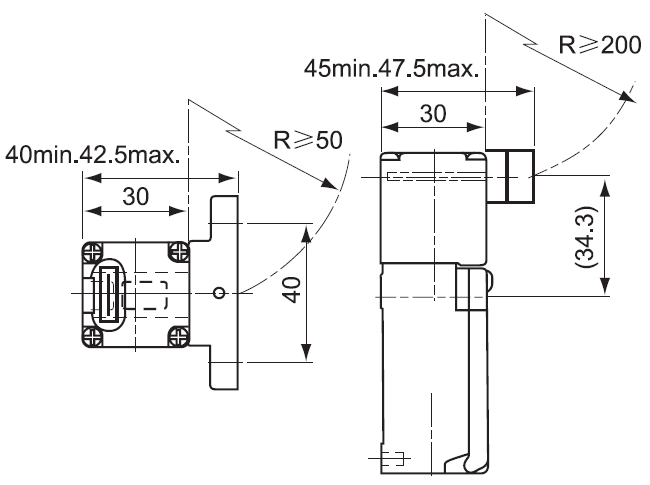

CZ-93BPG03 BPT03 CPG03 CPT03
CZ-93BPG03 BPT03 CPG03 CPT03
Dimension

CZ93-K1
CZ93-K1
Dimension

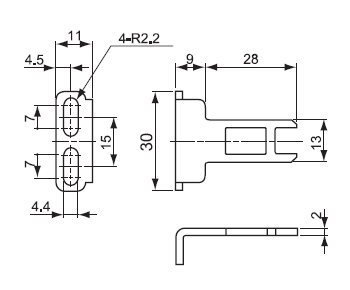

CZ93-K2
CZ93-K2
Dimension

CZ93-K3
CZ93-K3
Dimension
