Power Pushbutton Switch
>> Download PDF (695KB)

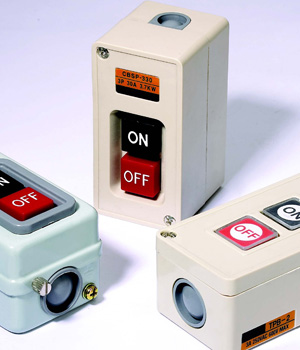

Power Pushbutton Switch
Features:
- Metal Series Shell
- Plastic Series Shell
Certificate
Technical Data
Characteristics
| Model | Specification | Mounting type | Connection terminal | Material |

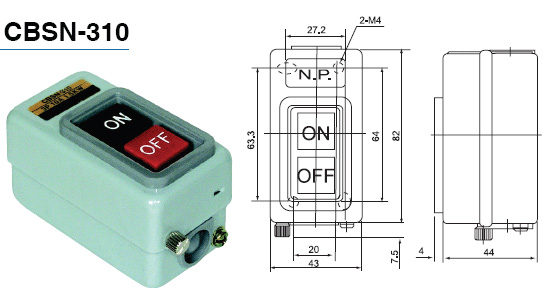

| CBSN-310 | 3 Φ 10A 1.5KW | Flush Mounting | M3.5 | Iron |
| CBSN-315 | 3 Φ 15A 2.2KW | Flush Mounting | M4 | Iron |

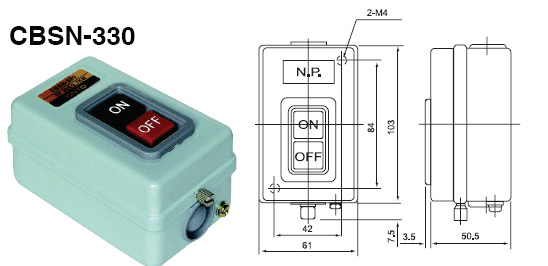

| CBSN-330 | 3 Φ 30A 3.7KW | Flush Mounting | M5 | Iron |

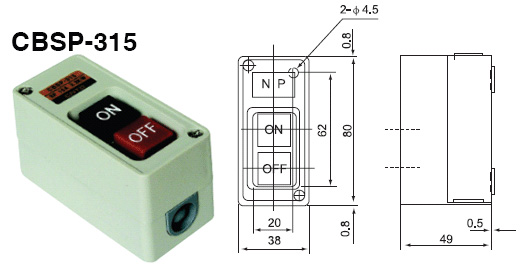

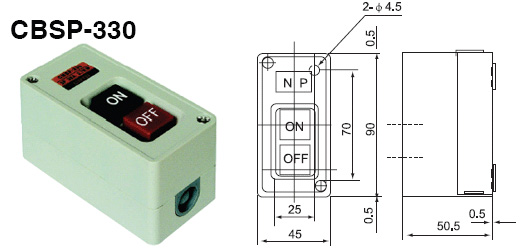

| CBSP-315 CBSP-330 |
3 Φ 15A 2.2KW 3 Φ 30A 3.7KW |
Surface Mounting | M4 | Iron |

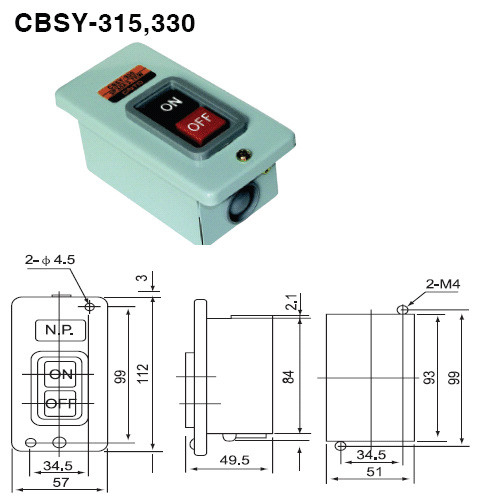

| CBSY-315 CBSY-330 |
3 Φ 15A 2.2KW 3 Φ 30A 3.7KW |
Surface Mounting | M4 | Iron |
| CBSY-315 | 3 Φ 15A 2.2KW | Flush Mounting | M3.5 | Plastic |
| CBSY-330 | 3 Φ 30A 3.7KW | Flush Mounting | M4 | Plastic |

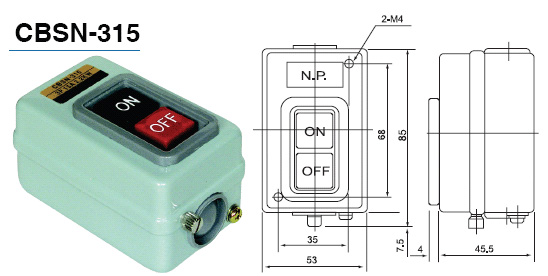

Dimension
 |
 |
 |
 |
 |
 |
 |
 |
