PCB Relay - JQC-3F(T73)

Relay

PCB Relay

Home

JQC-3F(T73)

JQC-3F(T73)
JQC-3F(T73)

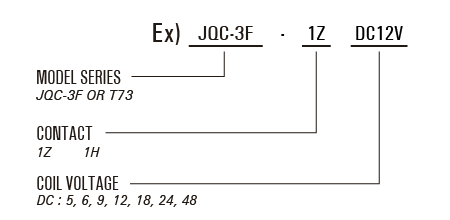

Order Code

Order Code

Technical Data

>> Download PDF (150KB)

Coil Specification

Coil Volatage 5,6,9,12,18,24,48VDC
Rated Coil Power 0.36W (48VDC 0.51W)

Technical Specification

Insulation Resistance ≥100mΩ (500VDC)
Dielectric strength Between coil and contacts ≥1500VAC1min
Between open contacts ≥750VAC1min
Operate/ Release time ≤10ms/ 5ms
Terminal Type PCB

Contact Specification

Contact Form 1H/1Z
Contact Resistance ≤100mΩ (1A 6VDC)
Contact Material AgCdO, AgSnO2
Contact Capacity 5A 240VAC/30VDC 10A 240VAC/28VDC

Coil Date

Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
3 2.25 0.3 25
5 3.8 0.5 70
6 4.5 0.6 100
9 6.8 0.9 225
12 9.0 1.2 400
18 13.5 1.8 900
24 19.0 2.4 1600
48 36.0 4.8 4500

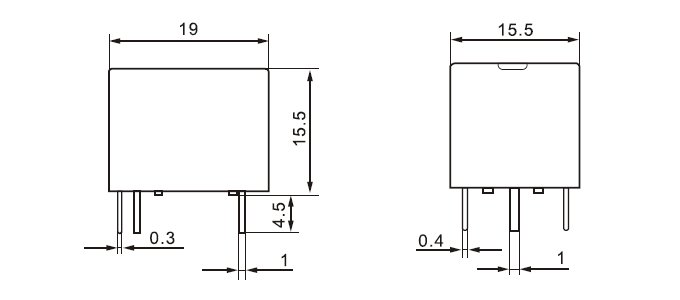

Dimension

Dimension
T73

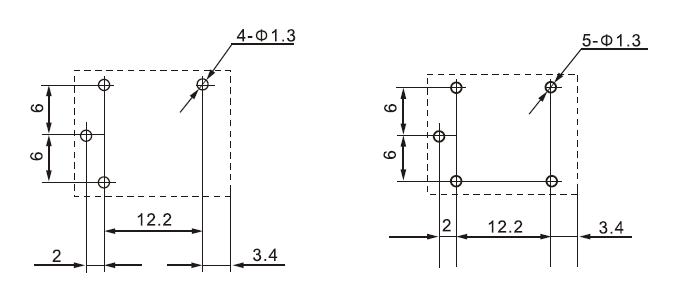

Dimension
T73

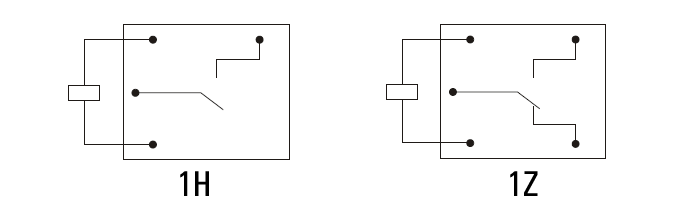

Wiring Diagram

Wiring Diagram
T73

Top
