Application

  • MEM series MCCB is applicable circuit of AC 50/60Hz, rated insulation voltage 690V, ratedcurrent 16-250A, for distribute energy of electricity & infrequent making & breaking circuit innormal conditions, protecting when circuit is overloaded, short circuit. The products conforms toIEC60947-2 standard.

Technical Data

Type MEM-125 MEM-250
Poles number 3 3
Rated current In(A) 16, 20, 32, 40, 50, 63,80, 100, 125 100, 160, 180, 200, 250
Utilisation category A A
Rated ultimate short-circuit breaking capacityIcu(KA) at 415V 16 25
Rated short-circuit service breaking capacityIcs(%Icu) at 415V 100 100

Dimensioned

Dimensioned

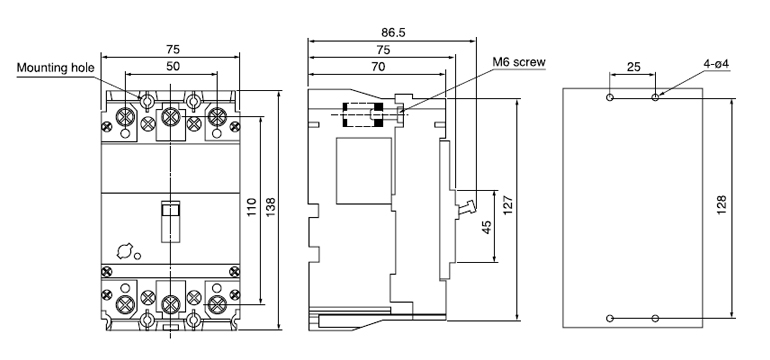

MEM-125
Dimensioned
MEM-250
