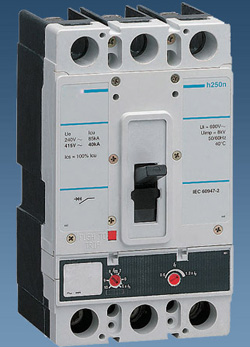

Molded Case Circuit Breaker
HG (Hager)
HG (Hager)Application
- HG Series MCCB is applicable circuit of AC 50/60Hz, rated insulation voltage 690V, ratedcurrent 16-250A, for distribute energy of electricity & infrequent making & breaking circuit innormal conditons, protecting when circuit are overload, short circuit. The product conforms to IEC60947-2 standard
Technical Data
| Type | HG10-125 | HG10-250 | |
| Poles number | 3 | 3 | |
| Rated current In(A) | 16,20,25,32,40,50,60,80,100,125 | 63,80,100,125,160,200,225,250 | |
| Rated insulation voltage Ui(V) | 690V | 690V | |
| Utilisation category | A | A | |
| Rated impulse withstand voltage(KV) | 6 | 8 | |
| Rated breakingcapacity (KA)Icu/Ics | 220/240VAC | 25/7 | 40/40 |
| 380/415VAC | 18/5 | 25/25 | |
| 660/690VAC | - | 12/6 | |

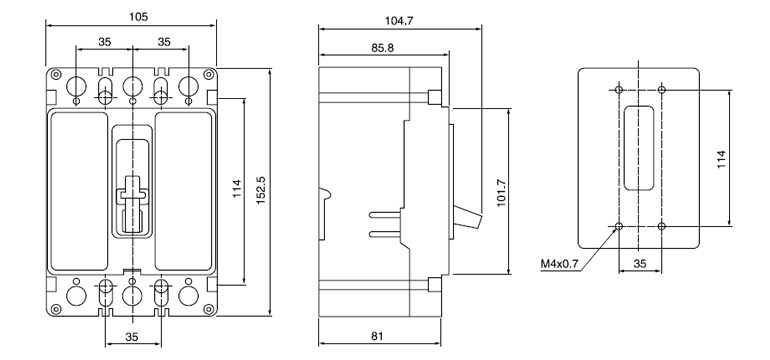

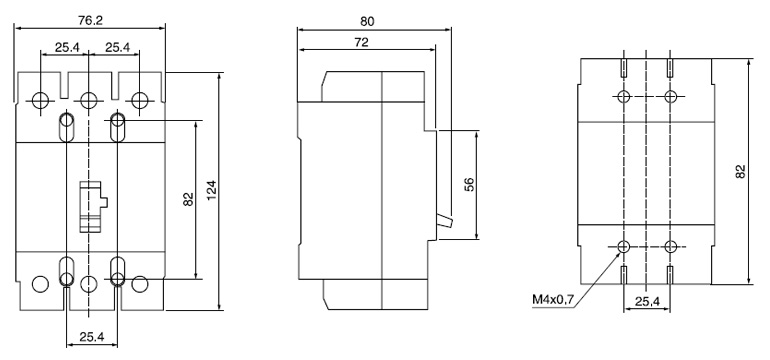

Dimensioned
 |
 |
