RL Series

Classification models

    Meaning and classification models

Feature

  • IP55 protection rating - more info on IP ratings
  • Epoxy polyester powder coating textured finishi
  • RAL 7032 textured finish
  • Modular system assembly for modular switchgear, with adjustable symmetrical distance betwen sections of 35mm and cover plate from 40 to 85mm depending on user requirements.

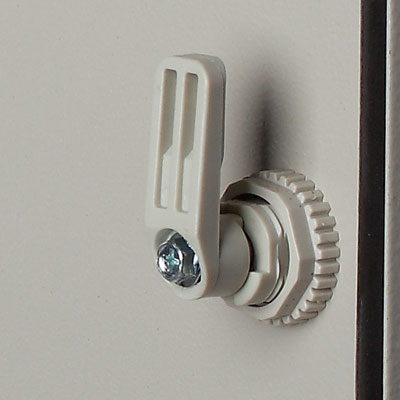

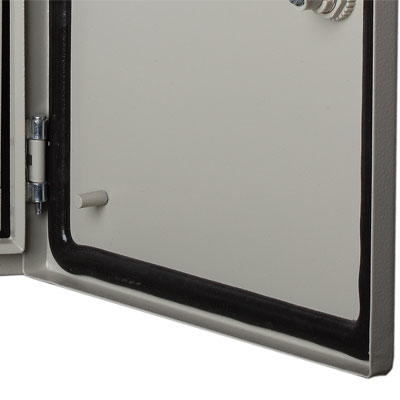

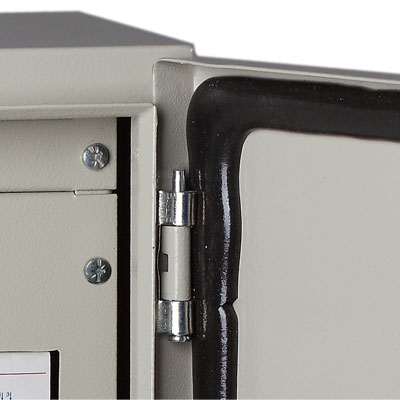

    Hinge Seal Lock

References and details of enclosures

Dimension(mm) Modular layer No. of breaker
Height
(H)
Width
(W)
Depth
(D)
400 300 150 2 24
500 400 150 3 48
600 400 150 3 48
600 600 150 3 84
750 500 150 3 66
750 500 150 4 88
800 600 150 4 84
800 600 150 4 112
1000 600 150 6 168
1000 800 150 6 240
    Note:
  • Other size can customization
  • Tansparent door depth >150mm
