Accessories
Canopy
Canopy
- Recommended for outdoor installation.-manufactured in 1.2 mm sheet steel.
- Surface finish:
Standard cycle thermosetting epoxypolyester powder coating in textured RAL7032
For outdoor installation we suggest a specific painting.
References and details of enclosures
| Code | Width | Depth | |
| Mod. | Art. | ||
| TT1 | 420 | 400 | 200 |
| TT2 | 425 | 400 | 250 |
| TT1 | 520 | 500 | 200 |
| TT2 | 525 | 500 | 250 |
| TT1 | 625 | 600 | 250 |
| TT2 | 630 | 600 | 300 |
| TT2 | 830 | 800 | 300 |
Door stop
Door stop
- Holds the door at 90° to avoid accidental closing.
- Manufactured in 2 mm and 3 mm sheet steel zinc plated passivated.
- Can be used on st stp boxes.
- Packs of 1 piece with fixing material
Wall mounting bracket WC010
Wall mounting bracket
- Manufactured in 4 mm sheet steel zinc plated passivated.
- Packs of 4 pieces with fixing material.
Hinge
Hinge
- 1.Model: H180 for 180 degree
- 2.Model: H120 for 120 degree(standard door)
- Packs of 1 piece with fixing material
Earthing wire
Earthing wire
| Model | Sq (mm2) |
Length (mm) |
Diameter of rings (mm) |
| EM6130 | 6 | 130 | 6.4 |
| EM6160 | 160 | 6 | 6.4 |
| EM6168 | 160 | 6 | 8.3 |
| EM1025 | 250 | 10 | 6.4 |
| EM2535 | 350 | 25 | 8.3 |

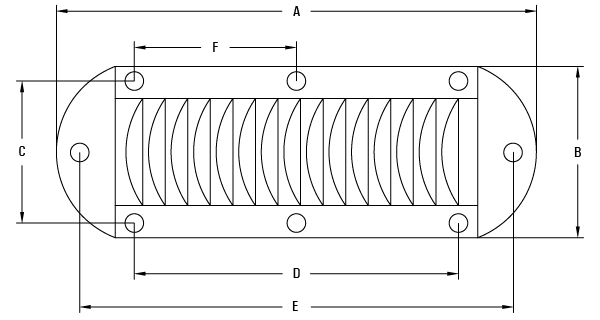

Louver Plates
Louver Plates
- To be fitted on any enclosure for internal ventilation.
- Colour RAL7032
| Ref. | A | B | C | D | E | F |
| GP-1 | 158 | 78 | 65 | 100 | - | - |
| GP-2 | 208 | 89 | 72 | 80 | 190 | - |
| GP-3 | 244 | 90 | 72 | 80 | 226 | - |
| GP-4 | 359 | 129 | 114 | 300 | 344 | 100 |
| GP-5 | 445 | 148 | 130 | 300 | 427 | 100 |
Dimensioned
Plinth system
Plinth system
- To fit directly to enclosures using the same holes as for ground fixing.
- 100mm and 200mm high
- Access from front and rear.
- Can be joined side to side for enclosure suites.
- Dark grey polyester epoxy paint to RAL7022.
