Circuit Breaker

Auxiliary Block

Home

C45 OF, SD

OF, SDOF, SD

Application

  • Be suitable for auxiliary ON/OFF contact .Can point out the disconnection or put through position of the circuit breaker, can install on the left of the Circuit Breaker. For use as the sound or light signal . Be applicable to instruct coherent broken state of circuit, chassis or front or reverse side of outer shell or operations area can see the signal instruction. Can be used for uniting the warning contact.

Advantage

  • Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
  • Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
  • The fast and flexible production form aim at the customer require;
  • The deliveries exactly in accordance with customer orders
  • The fast transportation.

Normal operation and mounting requirement

  • Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
  • Altitude above sea level less than 2000 m.
  • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
  • Installation class II or III.
  • Pollution class 2.
  • Installation method DIN Rail mounting type.
  • The external magnetism shall not be more than 5 times of terrestrial one.
  • Product shall be installed at the place where there shall be no severe impact and vibration.
  • Product shall be vertically mounted onto standard Din rail 35mm.

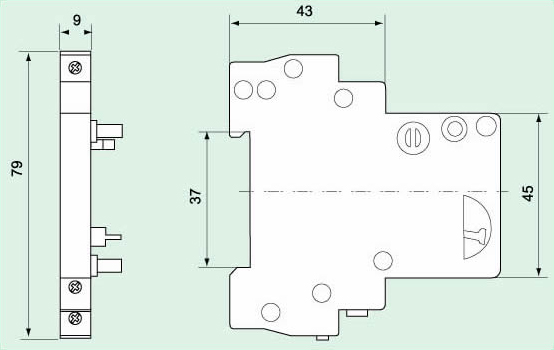

Dimensioned

Dimensioned
OF, SD

Top

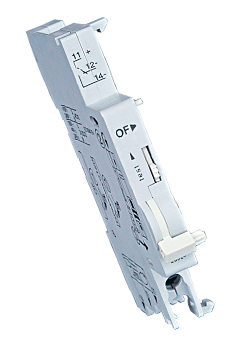

C65 OF, SD

OFOF
SDSD

Application

  • Be suitable for auxiliary ON/OFF contact .Can point out the disconnection or put through position of the circuit breaker, can install on the left of the Circuit Breaker. For use as the sound or light signal . Be applicable to instruct coherent broken state of circuit, chassis or front or reverse side of outer shell or operations area can see the signal instruction. Can be used for uniting the warning contact.

Advantage

  • Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
  • Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
  • The fast and flexible production form aim at the customer require;
  • The deliveries exactly in accordance with customer orders
  • The fast transportation.

Normal operation and mounting requirement

  • Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
  • Altitude above sea level less than 2000 m.
  • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
  • Installation class II or III.
  • Pollution class 2.
  • Installation method DIN Rail mounting type.
  • The external magnetism shall not be more than 5 times of terrestrial one.
  • Product shall be installed at the place where there shall be no severe impact and vibration.
  • Product shall be vertically mounted onto standard Din rail 35mm.

Technical Data

Type C65-SD
Rated insulating voltage (Ui) 500V
Rated power voltage (Us) AC 400,230,125V
Operate voltage range 70~100% Us
Contact capacity AC:3A/400V
AC:6A/230V
AC:9A/125V
Dielectric strength 2000V/1min
Electro-mechanical endurance ≥4000
Is used to connect ON/OFF auxiliary contact, work as circuit breaker ON/OFF indicator in case of faulty (tripping)

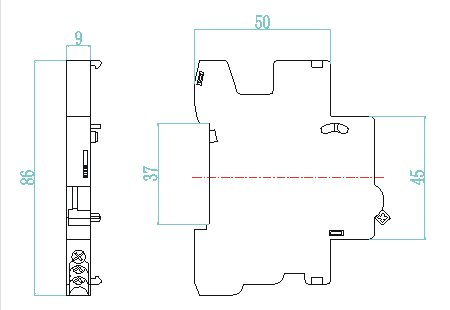

Dimensioned

Dimensioned
OF

Top

Modular Signal Lamp

V2, V3V2, V3
V1V3
C45DC45D

Application

  • Modular Signal Lamp Mainly used to indicate the status of a part of the installation, heater ,motor ,fan and pump etc.
  • Din rail indicator
  • Modular indicator,electric indicator ,modular breaker

Technical Data

Type V1, V2, V3, C45D
Rated Voltage 220 ~ 240VAC
Lamp Type Neon Lamp, LED
Color Red, Green, Orange and Transparent
Cinnection 1 ~ 25mm
Protection IP20
Mounting DIN Rail
Dimension 1P for 81x18x68mm(LXWXH)
