Mini Circuit Breaker
L5S
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Application:
- K101/K5SX Mini Circuit Breaker is mainly used for overload and short circuit protection
- Especially used for illumination and distribution in industry and commerce buildings.
- K101/K5SX Mini Circuit Breaker is mainly used for overload and short circuit protection with in the circuit of AC 50/60Hz,rated voltage of single pole up to 240V,two,three or four pole up to 415V.
- Can be used for an infrequent switchover of the circuit and illumination under normal conditions.
Technical Data
| Type | L5S (K101, K5SX) |
| Number of poles | 1P, 2P, 3P |
| Rated Current(A) | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Breaking Capacity(A) | 6000 (K5SX)/ 3000(K101) |
| Rated Voltage(V) | 230/415V |
| Rated Frequency(Hz) | 50/60Hz |

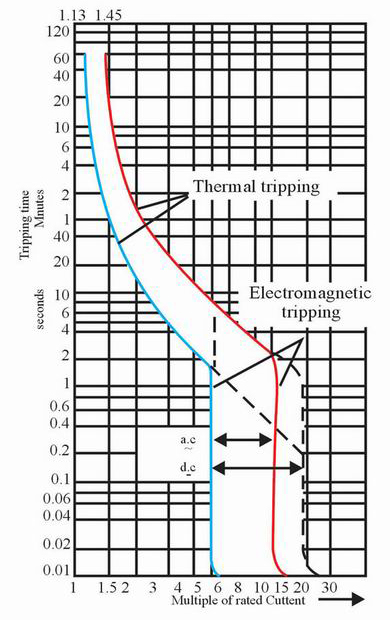

Characteristic Curve
